What Are the Advantages of Laser Diameter Measuring Tools?
21-08-2026
A laser diameter measuring tool—often referred to as a Laser Scan Micrometer—is a high-precision instrument that uses laser technology to measure workpiece dimensions without physical contact.It provides fast, high-precision measurement and is widely used for online quality control and offline inspection in modern industrial manufacturing.
1. Core Measurement Principles
Laser diameter measuring tools mainly use the following measurement principles. Different methods have their own characteristics and are suitable for different measurement applications.
1.1 Laser Scanning Method
This is one of the most widely used methods for laser diameter measurement. Inside the instrument, a high-speed rotating polygon mirror scans a laser beam across the measured object, forming a light curtain. A photoelectric receiver detects the time during which the laser beam is blocked. The diameter of the object can then be calculated based on the scanning speed and blocking time.
This method provides fast, non-contact diameter measurement and is suitable for applications that require continuous or repeated inspection.
1.2 Telecentric Optical Imaging Method
This method uses a parallel light source and a telecentric lens to project the outline of the measured object onto a CCD or CMOS sensor. The telecentric optical system helps maintain a stable image of the workpiece and is suitable for high-frequency measurement and online inspection applications.
2. Key Features and Advantages
Compared with traditional contact measuring tools such as calipers and micrometers, laser diameter measuring tools offer several advantages.
2.1 Non-Contact Measurement
The measurement process does not require physical contact with the workpiece. This helps prevent scratches or deformation when measuring soft, high-temperature, easily deformed, or highly polished workpieces.
2.2 High Accuracy and Repeatability
Laser diameter measuring tools can provide micrometer-level or even sub-micrometer-level measurement accuracy, depending on the instrument and application. High repeatability also helps ensure stable and consistent measurement results.
2.3 High-Speed and Real-Time Measurement
Laser diameter measuring tools can perform measurements at high sampling rates, allowing small changes in workpiece diameter to be detected in real time. This makes them particularly suitable for high-speed production lines and continuous online inspection.
2.4 Automation and Intelligent Control
Laser diameter measuring tools can be integrated with PLC and MES systems to support automatic measurement, data transmission, out-of-tolerance alarms, and process control. This makes them suitable for automated quality inspection and smart manufacturing applications.
3. Main Applications
Laser diameter measuring tools are widely used in industries where the outside diameter of workpieces needs to be measured quickly and accurately.
3.1 Wire and Cable Industry
Laser diameter measuring tools can be used for online inspection of the outer diameter and insulation thickness of:
● Cables
● Optical fibers
● Enameled wires
● Communication cables
Non-contact measurement is particularly useful for continuously moving products during production.
3.2 Metal Processing Industry
Laser diameter measuring tools can be used to measure the outer diameter of metal wires, rods, and tubes during processes such as drawing and rolling.
Typical applications include steel tubes, copper wires, aluminum profiles, and other metal products requiring continuous dimensional inspection.
3.3 Precision Manufacturing Industry
Laser diameter measurement is suitable for inspecting high-precision shaft-type parts and other components used in industries such as aerospace, automotive, and hydraulic equipment.
Typical applications include:
• Shaft-type parts
• Bearings
• Balls
• Milling cutters
• Other precision components
3.4 Rubber and Plastics Industry
Laser diameter measuring tools can be used for online monitoring of the outer diameter of rubber hoses, plastic tubes, sealing strips, and other extruded products.
Because the measurement is non-contact, the system can monitor product dimensions without interrupting the production process.
Laser Diameter Measurement with INSIZE

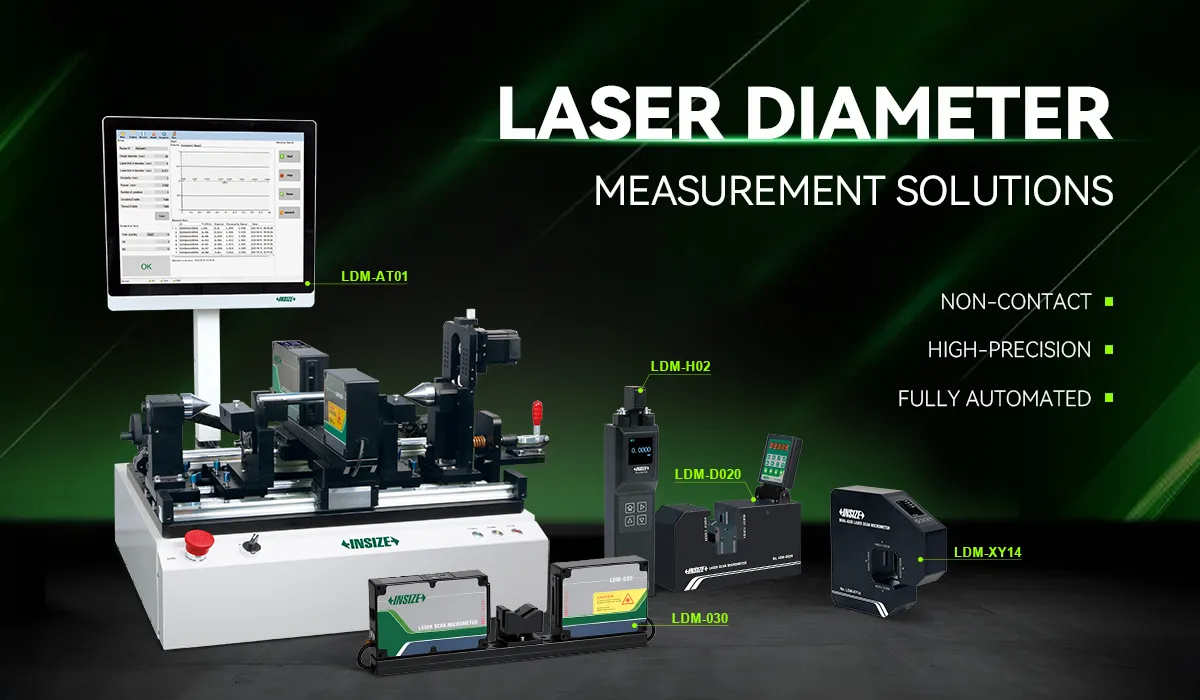

INSIZE provides laser diameter measuring solutions for different industrial measurement requirements, including handheld laser scan micrometer, fixed-position Laser Scan Micrometer, and automatic laser scan micrometer. These solutions can be used for applications such as wire, cable, pipe, shaft, and other workpiece diameter measurement.
Explore INSIZE laser diameter measuring tools to find a suitable solution for your measurement application.
